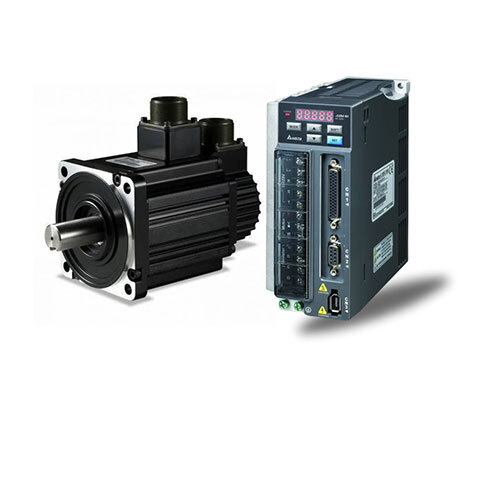

A2 SERIES 400V INCREMENTAL - WITH BRAKE
Product Details:
- Weight 12.9 kg
- Drive Type Electric motor with brake
- IP Rating IP54
- Load Capacity Up to 25 Nm
- Phase Three Phase
- Remote Control Yes
- Features Integrated electromagnetic brake, high precision, robust build, easy installation
- Click to View more
X
A2 SERIES 400V INCREMENTAL - WITH BRAKE Product Specifications
- Incremental Encoder Control
- High-quality alloy steel
- Industrial automation, position feedback, motor control
- 400V AC
- 400V Rated
- Three Phase
- IP54
- -10C to +40C
- Automatic
- Up to 25 Nm
- Standard Cable Connector
- Electric motor with brake
- 2 meters
- 50/60 Hz
- Integrated electromagnetic brake, high precision, robust build, easy installation
- Incremental Encoder
- Yes
- 12.9 kg
- 0-3000 RPM
- Flange Mounted
- <60 dB
- 19 mm
- 2G
- 1024 PPR (Pulses Per Revolution)
- 20,000 hours continuous operation
- Electromagnetic Brake
- Dynamically balanced, powder coated
- 40 mm
- RoHS, CE Marked
- Overload & Short-Circuit Protection
- Max 85% RH
- Self-cooled
- 2.5A
- Class F
Product Description
| Torque Nm | Rated RPM | Output Watts |
| Motor | Driver |
| 3.18 | 3000 | 1000 | Low Inertia | ECMA- J11010SS | ASD- A2- 1043-M |
| 6.37 | 3000 | 2000 | ECMA- J11020SS | ASD- A2- 2043- M | |
| 9.55 | 3000 | 3000 | ECMA- J11330S4 | ASD- A2- 3043-M | |
| 4.77 | 2000 | 1000 | Medium Inertia | ECMA- K11310SS | ASD- A2- 1041-M |
| 7.16 | 2000 | 1500 | ECMA- K11315SS | ASD- A2- 1541-M | |
| 9.55 | 2000 | 2000 | ECMA- K11320SS | ASD- A2- 2043-M | |
| 19.1 | 1500 | 3000 | High Inertia | ECMA- L11830SS | ASD- A2- 3043-M |
| 28.65 | 1500 | 4500 | ECMA- L11845SS | ASD- A2- 4543-M | |
| 35.01 | 1500 | 5500 | ECMA- L11845S3 | ASD- A2- 5543-M | |
| 47.47 | 1500 | 7500 | ECMA- L11875S3 | ASD- A2- 7543-M |
High Precision and Durability
Designed with a 1024 PPR incremental encoder and electromagnetic brake, the A2 SERIES ensures accurate position feedback and quick, secure stopping. Its high-quality alloy steel construction guarantees robustness even in heavy-duty industrial environments. The powder-coated housing, Class F insulation, and dynamic balancing further enhance its longevity and operational stability, supporting up to 20,000 hours of continuous service.
Flexible Industrial Applications
This unit handles various industrial automation needs such as motor control and position feedback. With a speed range of 0 to 3000 RPM and a load capacity of up to 25 Nm, it accommodates machinery requiring precision and reliability. The self-cooled, flange-mounted design, paired with 2-meter cable connectivity, makes for easy installation in diverse industrial setups across India.
Safety and Compliance
The A2 SERIES motor offers advanced safety features including overload and short-circuit protection. Its RoHS and CE certifications confirm adherence to international quality and environmental standards. The low noise level (<60 dB) and vibration resistance (2G) ensure smooth and safe operation, making it suitable for both new installations and retrofits in controlled environments.
FAQ's of A2 SERIES 400V INCREMENTAL - WITH BRAKE:
Q: How does the electromagnetic brake function in the A2 SERIES 400V Incremental motor?
A: The electromagnetic brake enables rapid and secure stopping of the motor by engaging the brake when electrical power is cut off, ensuring safe operation during position holding or emergency stops in industrial automation applications.Q: What are the installation requirements for this motor and brake system?
A: Installation is straightforward due to the motor's flange-mounted design and 2-meter standard cable connector. It is essential to mount it in environments within -10C to +40C temperature range and a maximum of 85% relative humidity to ensure optimal performance and durability.Q: Where can the A2 SERIES motor be used most effectively?
A: This motor is best suited for industrial automation tasks, such as conveyor systems, robotics, and machinery requiring accurate position feedback and reliable braking. Its robust construction and IP54 protection enable safe operation in moderately dusty or moist production settings.Q: What benefits does the 1024 PPR encoder provide in position control?
A: The 1024 PPR (Pulses Per Revolution) encoder delivers high-resolution position feedback, significantly improving the accuracy and responsiveness of control systems in automation, enhancing productivity and reducing error rates.Q: When is maintenance recommended for this motor system?
A: Routine maintenance should be performed as per standard industrial schedules or after every 20,000 hours of continuous operation to maximize life expectancy. Regular checks on the brake mechanism, insulation, and cable connections are also advisable.Q: What protections are integrated into this product for safe operation?
A: The A2 SERIES motor includes overload and short-circuit protection systems, which safeguard both the device and connected equipment from potential electrical faults, supporting safe and reliable long-term industrial use.Q: How does the self-cooling and noise management enhance operational efficiency?
A: The self-cooled design ensures the motor remains within optimal temperature ranges during extended use, while a noise level below 60 dB enables quieter operations-ideal for environments where noise pollution must be minimized.Tell us about your requirement
