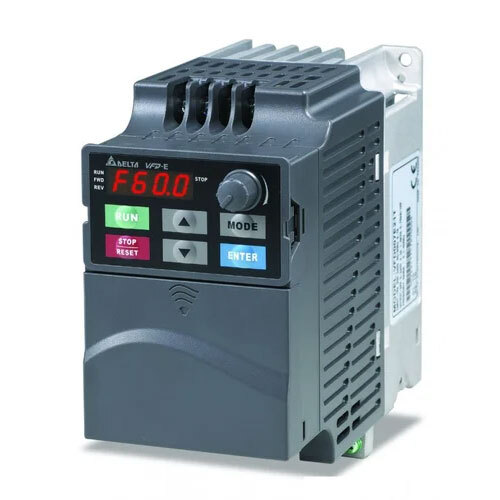

Delta E Series VFD
Product Details:
- Cable Length Customizable
- Connectivity Type RS-485 Modbus
- Processor Type 32-bit Microprocessor
- Load Capacity Upto 150% for 1 min
- Screen Size Digital Keypad
- Remote Control Yes
- IP Rating IP20
- Click to View more
X
Delta E Series VFD Product Specifications
- Variable Frequency Drive (VFD)
- Vector Control / V/F Control
- 0.4 kW to 3.7 kW
- Single Phase / Three Phase
- Overload Protection, Compact Design, Energy Saving Function
- 50/60 Hz
- Current and Voltage Sensors
- Industrial Automation, Pumps, Fans, Conveyors
- Depends on model (approx. 1.2 kg - 3.5 kg)
- 1.0~400 Hz
- Automatic
- IP20
- Wall Mount
- 230V / 380V AC
- ABS Plastic and Metal
- Yes
- Digital Keypad
- Upto 150% for 1 min
- 32-bit Microprocessor
- -10C to +50C
- RS-485 Modbus
- Customizable
- Built-in (Standard)
- Parameter setting via keypad
- LED Digital Display
- Fan Cooled
- Multi-programmable (5 channels)
- In-Built Braking Unit
- 150% at 5.0 Hz
- 2 channels (relay & open collector)
- 0~10V / 4~20mA
- Over Voltage, Under Voltage, Short Circuit, Overheat
Product Description
Applications Smaller cranes; washing machines; treadmilsl; robot arm of injection machine (clamp); elevator; grinding machine; drilling machine; wood machine; webbing loom; air conditioner for large buildings; water supply system for large buildings, etc.
Features:
- Output frequency: 0.1600Hz
- Modular & compact design
- Built-in PLC function
- Built-in EMI filter (230V 1 phase / 460V 3 phase)
- Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks and CANopen)
- RFI-switch for mains
- Easy DC BUS sharing
- Flexible extension
- Complete Protection
Range: Single Phase " 0.25HP to 3HP
Range: Three Phase " 0.5HP to 30HP
Advanced Performance & Control
Delta E Series VFD provides powerful vector control and V/F control modes, supporting precise speed regulation from 1.0 Hz up to 400 Hz, with a reliable starting torque of 150% at 5.0 Hz. Its 32-bit microprocessor and digital keypad allow seamless parameter setting for accurate operation and flexible programming.
Integrated Safety & Protection
Engineered for demanding environments, this VFD comes with built-in overvoltage, undervoltage, short circuit, and overheat protections. The advanced cooling system and overload protection offer stable operation and enhance the product's lifespan, ensuring peace of mind in industrial automation settings.
Designed for Versatility & Ease of Use
Constructed of durable ABS plastic and metal, the Delta E Series suits a variety of installation needs thanks to its wall mount design and customizable cable length. With remote control capabilities and multiple connectivity options like RS-485 Modbus, integration and monitoring become straightforward for operators.
FAQ's of Delta E Series VFD:
Q: How is the Delta E Series VFD programmed and controlled?
A: Programming the E Series VFD is done through a convenient keypad located on the digital display. Users can set and customize parameters for different applications, while remote control and monitoring are available via RS-485 Modbus connectivity, providing flexibility in operation.Q: What types of motors and industrial applications does this VFD support?
A: The Delta E Series VFD supports both single-phase and three-phase motors, making it suitable for a wide range of industrial uses such as pumps, fans, and conveyor systems in automation processes across sectors like manufacturing and processing.Q: When should a built-in braking unit be used in industrial setups?
A: The integrated braking unit is particularly useful when rapid deceleration or quick stopping of loads is required, such as in conveyor belts and automated handling systems, enhancing operational safety and responsiveness.Q: Where can this VFD be installed, given its protection and cooling features?
A: The VFD's IP20 rating, fan-cooled design, and extensive protection features make it suitable for indoor industrial environments with ambient temperatures between -10C and +50C. Wall mounting options allow placement in control panels or designated motor rooms.Q: What are the usage advantages of having multi-programmable digital and analog inputs?
A: Having five multi-programmable digital inputs and versatile analog input channels (0~10V / 4~20mA) allows customization for specific automation requirements, facilitating integration with various sensors and control systems for precise and flexible motor operation.Q: How does the built-in EMC filter benefit industrial facilities?
A: The integrated EMC filter minimizes electromagnetic interference with other equipment, enhancing system reliability and compliance with industrial standards. This ensures stable operation in environments where sensitive electronics are present.Tell us about your requirement
