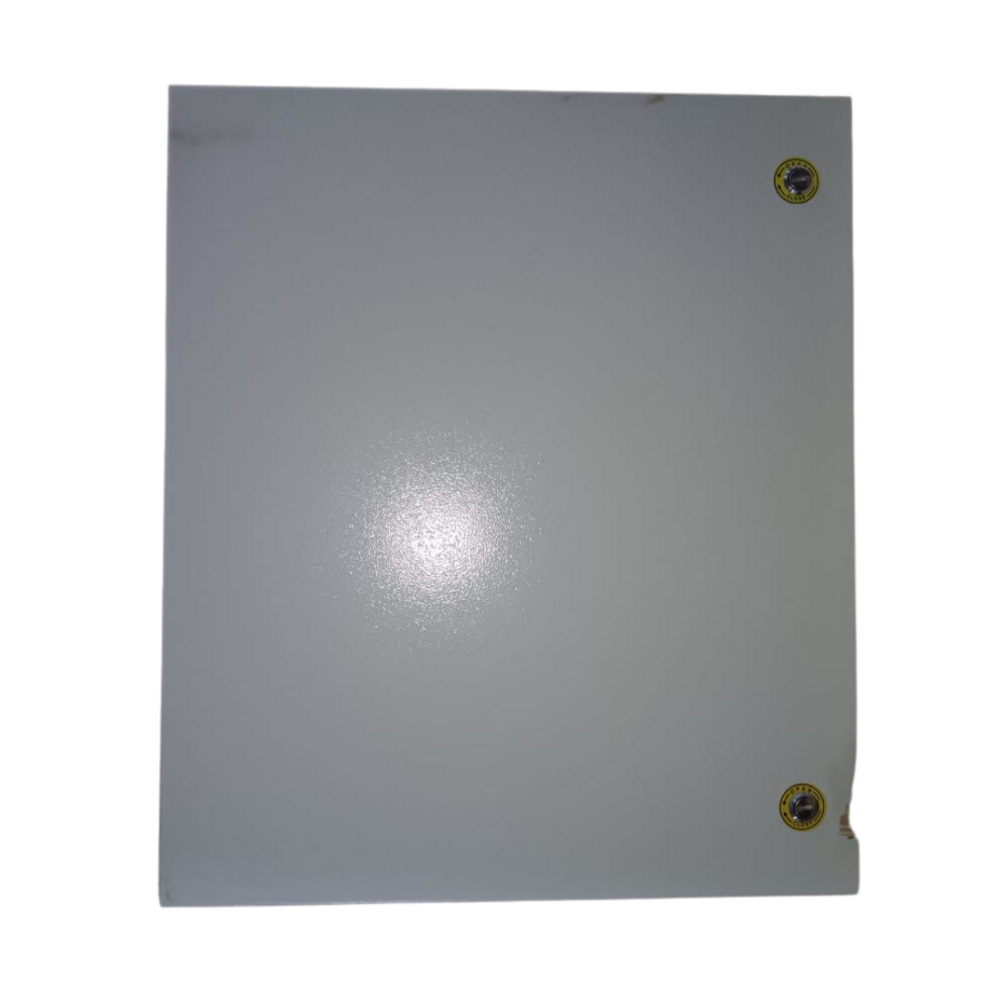

nVent Hoffman Enclosure Mild Steel MAS0303015R5

Product Description

MAS0303015R5 Mild Steel Single-Door Wall-Mounting Enclosure, 300x300x155mm

The MAS0303015R5 is a durable mild steel single-door enclosure designed for wall mounting with IP66-rated protection. Furthermore, this enclosure prevents dust and water ingress, reducing component failure and system downtime. Thus, it is ideal for industrial, electrical, and automation applications, meeting UL, NEMA, CSA, and IEC 62208 standards.

Key Features:

 Sturdy & Reliable Build  Made from folded and seam-welded mild steel, finished with a structured RAL 7035 powder coating for superior corrosion resistance.

 Protection  Moreover, it meets IP66, TYPE 4, 12, and IK10 standards, ensuring maximum safety even in harsh environments.

 Efficient Cable Management  In addition, a rear gland plate opening allows easy cabling installation onto the mounting plate.

 Optimized Mounting Plate  Marked at 10mm intervals for accurate equipment positioning, with adjustable depth using the AMG accessory. Consequently, this ensures installation flexibility.

 Advanced Locking Mechanism  Equipped with a double-bit 3mm lock, featuring 90 movement and an anti-vibration mechanism for added security. As a result, it enhances protection against unauthorized access.

 Flexible Door Configuration  The 130 opening door includes removable concealed hinges, allowing left or right-hand installation, while a polyurethane gasket ensures a tight seal.

 Complete Package  Includes the enclosure, door, mounting plate, gland plate, gaskets, key, and mounting accessories. Therefore, you get everything needed for quick installation.

Technical Specifications of MAS0303015R5:

 Material: Mild steel body (1.5mm), door (1.5mm), gland plate (1.4mm), mounting plate (2mm galvanized steel)
 Dimensions: H: 300mm | W: 300mm | D: 155mm
 Panel Size: 270mm x 250mm | Max Mounting Depth: 137mm
 Color: Light Gray (RAL 7035)
 Weight: 5.3kg
 Compliance: UL 508A, NEMA Type 4 & 12, CSA, CE, UKCA, DNV, EAC

The MAS0303015R5 is the ideal choice for compact industrial enclosures, providing durability, protection, and ease of installation. Moreover, safeguard your electrical and automation components with nVent HOFFMAN quality.

Superior Durability and Protection

Constructed from mild steel and coated with textured polyester powder, the nVent Hoffman MAS0303015R5 enclosure is designed for long-lasting durability. The robust IP66 rating ensures complete dust protection and resistance to water jets, making it ideal for harsh industrial environments. Its flame resistance conforms to VDE 0470-1 / EN 60529, mitigating fire hazards in critical installations.


Versatile and User-Friendly Design

The enclosure features a single, reversible door with a quarter turn lock, offering flexible installation and secure access. The mounting plate is made of galvanized steel for stability and corrosion resistance. Its flat base and bottom cable entry facilitate efficient wiring and mounting. The supplied gland plate simplifies cable management for installers.


Compliance and Performance

Engineered to comply with IEC 62208 and EN 62208 standards, this enclosure meets international requirements for safety and performance. The operating temperature range of -40C to +80C enables reliable operation in both cold and hot environments. Its light grey RAL 7035 color offers a professional appearance suited for various workspaces.
