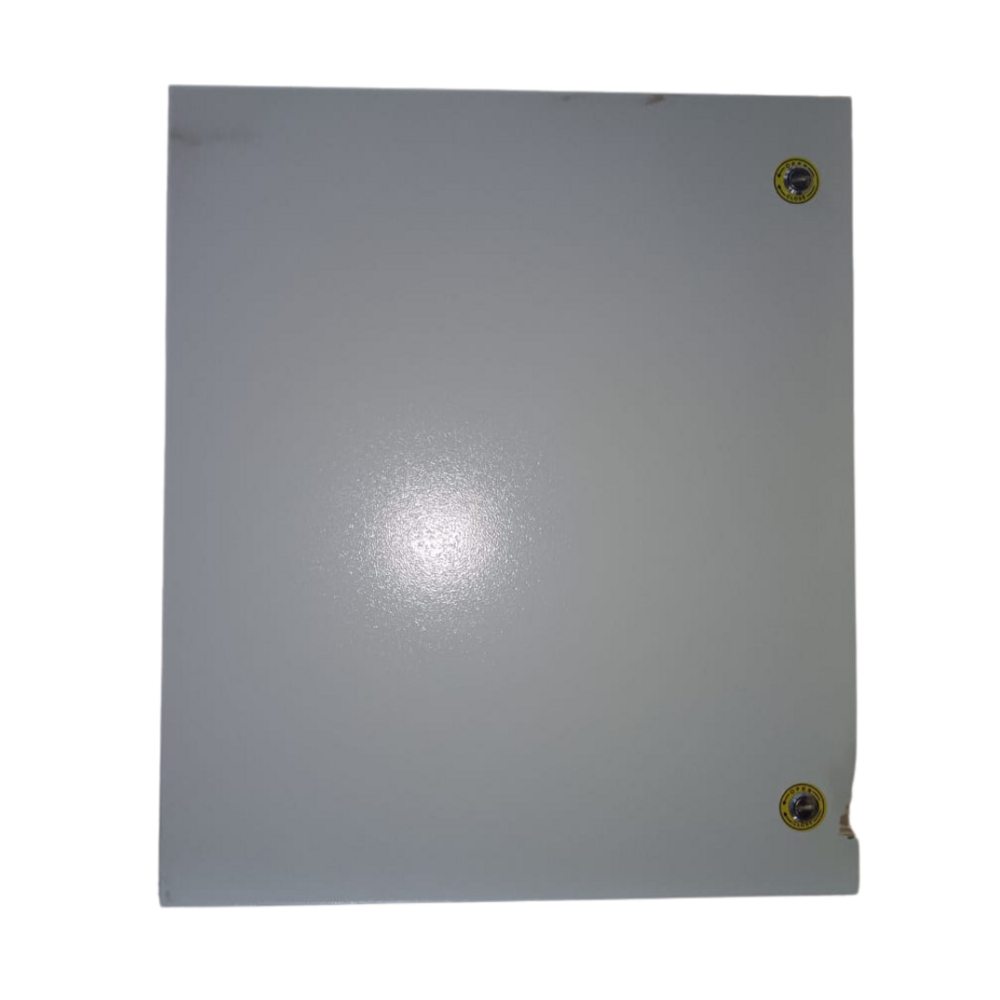

nVent Hoffman Enclosure Mild Steel MAS0304015R5

Product Description

The MAS0304015R5 is a high-quality mild steel single-door enclosure, designed for wall mounting with IP66-rated protection. Furthermore, its seam-welded construction prevents dust and water ingress, reducing the risk of component failure and system downtime.

Thus, it is perfect for industrial, electrical, and automation applications, meeting UL, NEMA, CSA, and IEC 62208 standards.

Key Features:

 Sturdy & Reliable Build  Constructed from mild steel with a RAL 7035 powder-coated finish, ensuring superior corrosion resistance. As a result, it extends the lifespan of the enclosure.

 IP66 Protection  Moreover, it meets Type 4, 12, and IK10 standards, providing exceptional defense against harsh environments.

 Efficient Cable Management  In addition, it features a rear gland plate opening, making cable installation easier.

 Optimized Mounting Plate  Marked at 10mm intervals for precise equipment positioning, with adjustable depth. Consequently, installation becomes more convenient.

 Advanced Locking System  Equipped with a double-bit 3mm lock featuring an anti-vibration mechanism. Therefore, it enhances security by preventing unauthorized access.

 Flexible Door Configuration  The 130 opening door comes with removable concealed hinges, allowing left or right-hand installation. So, users can adjust it as needed.

 Complete Installation Kit  Includes the enclosure, door, mounting plate, gland plate, gaskets, key, and mounting accessories. Therefore, setup is simple and hassle-free.

Technical Specifications of MAS0304015R5 :

 Material: Mild steel body (1.5mm), door (1.5mm), gland plate (1.4mm), mounting plate (2mm galvanized steel)

 Dimensions: H: 300mm | W: 400mm | D: 155mm

 Panel Size: 270mm x 350mm | Max Mounting Depth: 137mm

 Color: Light Gray (RAL 7035)

 Weight: 6.8kg

 Compliance: UL 508A, NEMA Type 4 & 12, CSA, CE, UKCA, DNV, EAC

The MAS0304015R5 is a reliable, durable, and secure enclosure, designed to protect electrical and automation components. Moreover, it ensures long-lasting performance even in demanding environments.

High-Level Protection and Compliance

This enclosure delivers IP66-rated protection against dust and water, adhering to IEC 62208 and IEC 60529 standards. The quarter turn lock and hinged door design facilitate secure, convenient access while ensuring components are shielded from challenging environments. The powder-coated, light grey finish offers resilience and modern appeal.


Effortless Installation and Adaptability

The wall-mount design, mild steel construction, and removable gland plate allow straightforward installation and flexible cable management. Compact yet spacious, with external dimensions of 300 mm x 400 mm x 150 mm, this terminal box adapts to various site requirements, supporting broad applications in electrical control, distribution, and automation systems.
