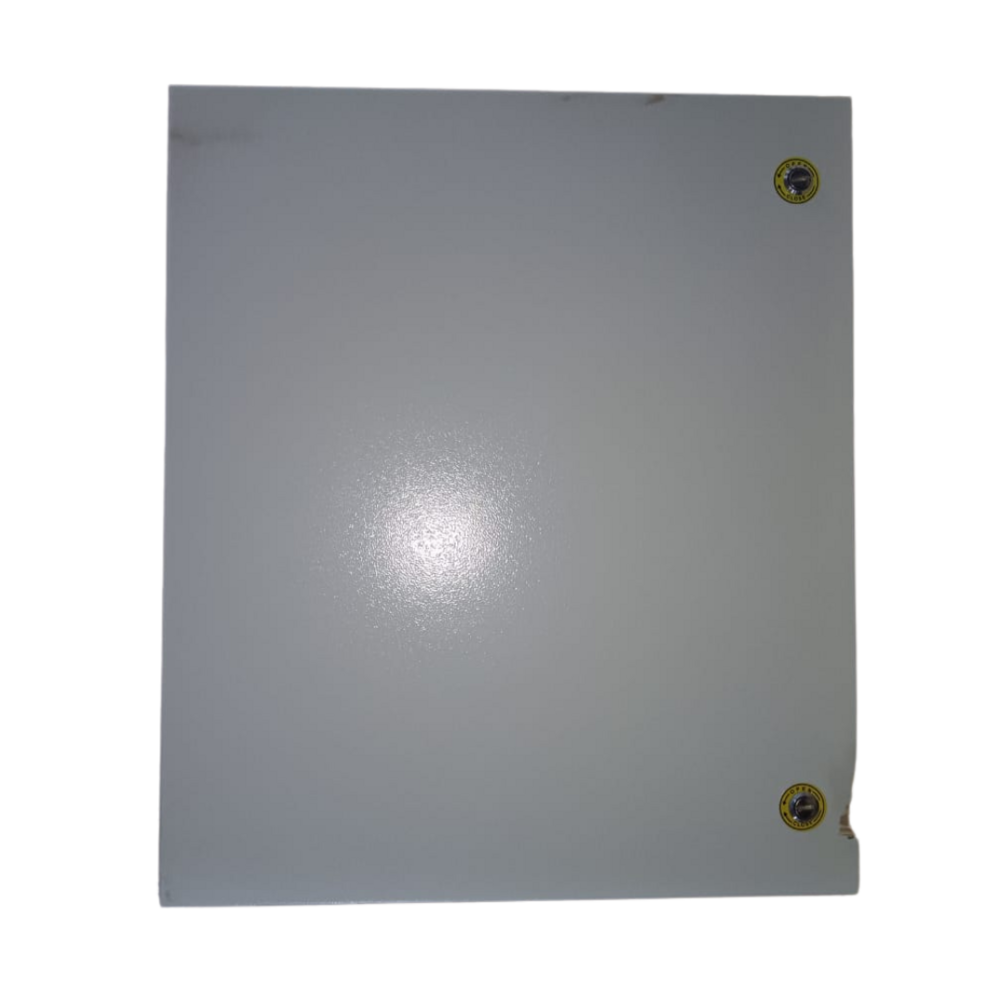

nVent Hoffman Enclosure Mild Steel MAS0608030R5
10400.0 INR
Product Details:
- Material Mild Steel
- Protection Level IP66
- Surface Treatment Powder Coating
- Weight 33.4 Kilograms (kg)
- Color Light Gray
- Warranty 1 Year
- Click to View more
X
nVent Hoffman Enclosure Mild Steel MAS0608030R5 Price And Quantity
- 1
- 10400.0 INR
nVent Hoffman Enclosure Mild Steel MAS0608030R5 Product Specifications
- Mild Steel
- Light Gray
- 1 Year
- IP66
- 33.4 Kilograms (kg)
- Powder Coating
nVent Hoffman Enclosure Mild Steel MAS0608030R5 Trade Information
- [, ', O, t, h, e, r, s, ', ]
- 20 Per Day
- 1 Week
- No
- [, , I, n, d, i, ', A, l, l, a, ', ]
- Industry Standards UL 508A Listed; Type 4, 12; File No. E92044 cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044 NEMA/EEMAC Type 4, 12 CSA, File No. 1442951: Type 4, 12 IEC 62208 IP66 KEMA, GOST, Lloyds, DNV, Maritime, CE
Product Description
The mild steel single door wall mounted enclosure range, MAS, with a IP 66 protection degree, is available off the shelf in many different sizes. This enclosure range is well suited for many different applications. The risk for component failure, andwith that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure.
Features
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: Complies with IP 66, TYPE 4, 12, IK 10. For outdoor installation, the use of a rain Hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistanceto corrosion must be taken into consideration for outdoor and indoor applications.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Material: Body: 1.2 mm mild steel for enclosures with a depth of 155 mm / 1.4 mm for enclosures with a depth of 210 or 260 mm / 1.5 mm for enclosures with a depth of 300 or 400 mm, or if a height or width is 1000 mm or greater. Gland plate: 1.4 mm mild steel. Door: 1.2 mm mild steel / 1.5 mm for enclosures with a height or width of 500 mm or greater / 2 mm for enclosures with a height or width of 800 mm or greater. Mounting plate: 2 mm galvanized steel.
- Lock: nVent HOFFMAN customized double-bit 3 mm lock, with 90 movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking for 1000 mm high enclosures and above. Other inserts are available as an accessory.
- Finish: RAL 7035 structured powder coating.
- Door: Surface mounted with 130 opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow left or right hand opening. Inner M6 welded studs to mount door profiles MMDP, see delivery. Sealing is ensured by an injected one piece polyurethane gasket.
- Delivery: Enclosure with door and mounting plate (not included for item numbers ending with PER5). For height 600 mm and above, two MMDP door mounting profiles. Gland plate(s) with gasket(s), plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above. Earthing facilities.
Specifications
Comprehensive Protection and Durability
Designed to endure challenging industrial environments, the nVent Hoffman Mild Steel Enclosure delivers reliable IP66-level protection against water, dust, and other contaminants. The powder-coated mild steel construction ensures long-term resilience, minimizing maintenance and replacement costs over time.
Versatile Application Across Industries
This enclosure is ideal for a broad spectrum of industries in India, supporting electrical and electronic installations. Its superior protection and sleek light gray finish make it suitable for both indoor and outdoor use in industrial automation, utilities, and more.
FAQ's of nVent Hoffman Enclosure Mild Steel MAS0608030R5:
Q: How does the IP66 protection level benefit my installation?
A: The IP66 protection ensures complete defense against dust intrusion and strong water jets, making it highly suitable for demanding environments where internal electronics require maximum safety from external elements.Q: What material is used in the nVent Hoffman MAS0608030R5 enclosure, and why is it advantageous?
A: The enclosure is made from mild steel, offering excellent strength and structural integrity. Coupled with a powder-coated finish, it resists corrosion and wear, extending the product's service life.Q: When should I choose this enclosure for my project?
A: Choose the MAS0608030R5 enclosure for projects requiring robust protection for electrical or electronic equipment, especially where exposure to dust or water is a concern. Its IP66 rating makes it ideal for both indoor and outdoor setups.Q: Where can I purchase the nVent Hoffman MAS0608030R5 enclosure in India?
A: This enclosure is available through a wide network of dealers, distributors, exporters, retailers, suppliers, traders, and wholesalers throughout India, making procurement convenient for various business needs.Q: What is the process for installation and maintenance?
A: The enclosure comes ready for straightforward installation, and its surface can be easily cleaned due to the powder-coated finish. Routine checks are recommended to ensure continued protection, especially in harsh environments.Q: How do I benefit from the product warranty?
A: Each unit comes with a 1-year warranty covering manufacturing defects, providing customers with confidence and support for their purchase.Q: What are the typical uses for this enclosure?
A: The MAS0608030R5 enclosure is commonly used to house electrical panels, control systems, and sensitive electronics, making it suitable for manufacturing, automation, utilities, and infrastructure applications.Tell us about your requirement
