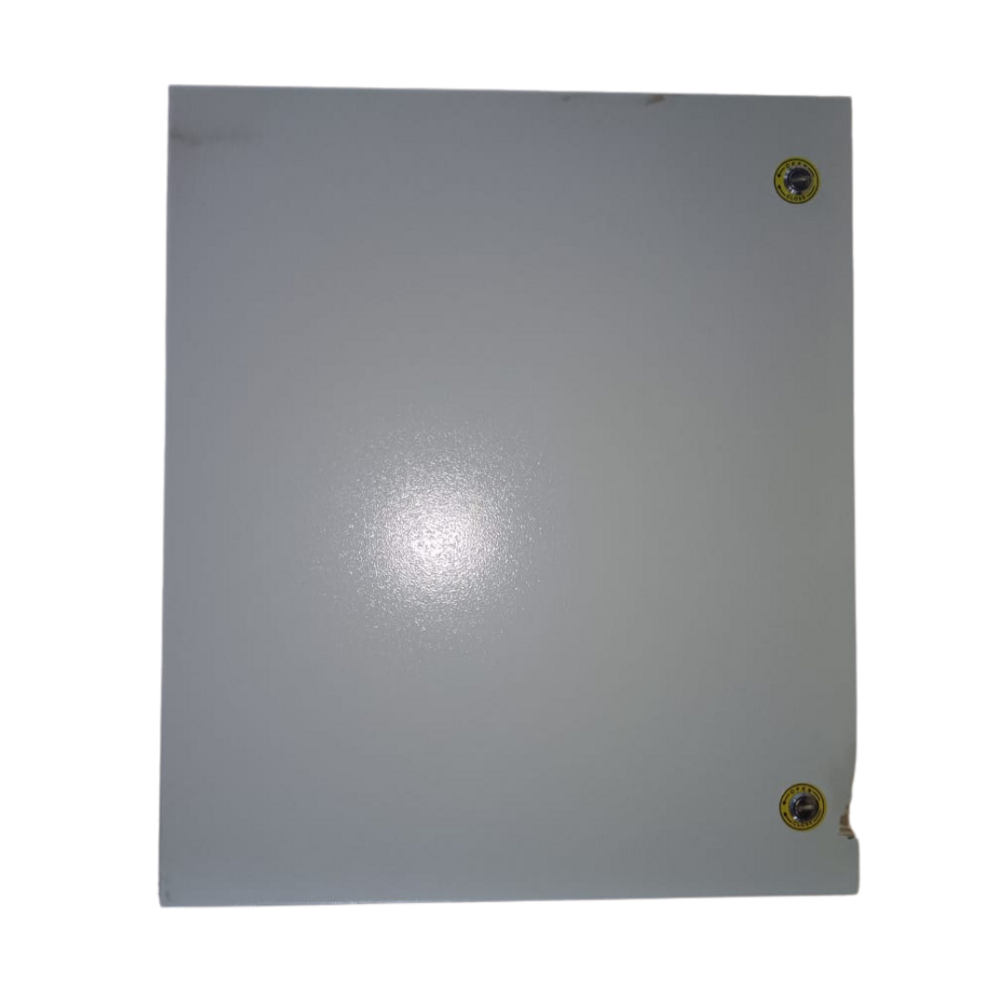

nVent Hoffman Enclosure Mild Steel MAS1208030R5

Product Description

MAS1208030R5 nVent HOFFMAN Mild Steel Wall-Mount Enclosure, 1200x800x300mm

The MAS1208030R5 from nVent HOFFMAN is a rugged single door enclosure, designed for industrial automation, electrical control panels, and power distribution.

With an IP66 rating, this wall mounting enclosure provides superior protection against dust, water ingress, and mechanical impacts, making it ideal for harsh environments.

Key Features:

 Rugged & Corrosion-Resistant  Made from seam-welded mild steel enclosure, finished with RAL 7035 powder coating for long-lasting durability.

 IP66 & NEMA Rated  Certified IP66, NEMA Type 4 & 12, and IK10, ensuring protection in demanding industrial environments.

 Efficient Cable Management  Features a rear gland plate opening, allowing structured cable routing and easy installation.

 Adjustable Mounting Plate  Pre-marked at 10mm intervals for precise equipment positioning and depth adjustability using AMG accessories.

 Enhanced Locking System  Features a double-bit 3mm lock with 90 rotation, ensuring secure enclosure access.

 Flexible Door Configuration  The 130 door opening, with removable concealed hinges, allows for left or right-hand installation. A polyurethane gasket ensures a tight dust and water seal.

 Complete Installation Kit  Comes with enclosure, door, mounting plate, gland plate, key, gaskets, and mounting accessories for easy setup.

Technical Specifications of MAS1208030R5:

 Brand: nVent HOFFMAN

 Material: Mild steel enclosure (1.5mm body & door; 2mm galvanized steel mounting plate)

 External Dimensions: 1200mm (H) x 800mm (W) x 300mm (D)

 Usable Panel Area: 1170mm x 750mm | Maximum Mounting Depth: 282mm

 Color: Light Gray (RAL 7035)

 Weight: Approx. 57.5kg

 Certifications: UL 508A, NEMA Type 4 & 12, CSA, CE, UKCA, DNV, EAC

Conclusion:

The nVent HOFFMAN single door enclosure MAS1208030R5 is an excellent choice for industrial control panels and automation systems, offering high protection, flexibility, and easy installation.

MAS1208030R5 nVent HOFFMAN Mild Steel Wall-Mount Enclosure, 1200x800x300mm

The MAS1208030R5 from nVent HOFFMAN is a rugged single door enclosure, designed for industrial automation, electrical control panels, and power distribution.

With an IP66 rating, this wall mounting enclosure provides superior protection against dust, water ingress, and mechanical impacts, making it ideal for harsh environments.

Key Features:

 Rugged & Corrosion-Resistant  Made from seam-welded mild steel enclosure, finished with RAL 7035 powder coating for long-lasting durability.

 IP66 & NEMA Rated  Certified IP66, NEMA Type 4 & 12, and IK10, ensuring protection in demanding industrial environments.

 Efficient Cable Management  Features a rear gland plate opening, allowing structured cable routing and easy installation.

 Adjustable Mounting Plate  Pre-marked at 10mm intervals for precise equipment positioning and depth adjustability using AMG accessories.

 Enhanced Locking System  Features a double-bit 3mm lock with 90 rotation, ensuring secure enclosure access.

 Flexible Door Configuration  The 130 door opening, with removable concealed hinges, allows for left or right-hand installation. A polyurethane gasket ensures a tight dust and water seal.

 Complete Installation Kit  Comes with enclosure, door, mounting plate, gland plate, key, gaskets, and mounting accessories for easy setup.

Technical Specifications of MAS1208030R5:

 Brand: nVent HOFFMAN

 Material: Mild steel enclosure (1.5mm body & door; 2mm galvanized steel mounting plate)

 External Dimensions: 1200mm (H) x 800mm (W) x 300mm (D)

 Usable Panel Area: 1170mm x 750mm | Maximum Mounting Depth: 282mm

 Color: Light Gray (RAL 7035)

 Weight: Approx. 57.5kg

 Certifications: UL 508A, NEMA Type 4 & 12, CSA, CE, UKCA, DNV, EAC

Conclusion:

The nVent HOFFMAN single door enclosure MAS1208030R5 is an excellent choice for industrial control panels and automation systems, offering high protection, flexibility, and easy installation.

Superior Protection and Reliability

Designed with an IP66 rating, the MAS1208030R5 enclosure offers maximum defense against dust and high-pressure water, ensuring internal components remain safe. Its polyurethane foamed-in-place gasket enhances the seal integrity, while the double-bit 3 mm locking system provides secure access control. These features make it suitable for demanding industrial environments.


Compliance and Durability

Manufactured from mild steel and finished with a polyester powder coat (RAL 7035), the enclosure combines strength with corrosion resistance. It complies with IEC 62208 and RoHS standards, making it a reliable and environmentally responsible choice for electrical solutions in India and globally.
