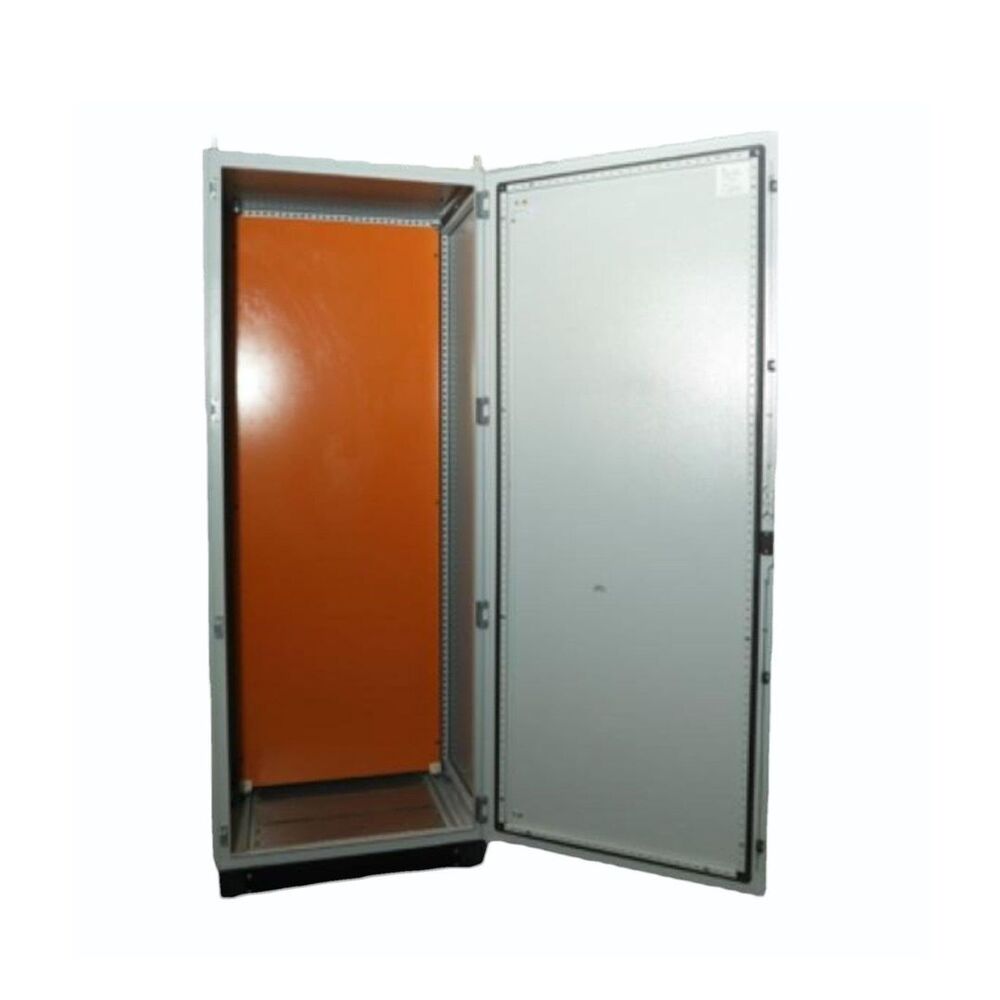

TCE Series Floor Standing Enclosure

Get a Price/Quote

Product Details:

Product Type Floor Standing Enclosure
Material Cold Rolled Steel
Protection Level IP55
Surface Treatment Powder Coated
External Size Customizable
Thickness 1.2 mm / 1.5 mm
Paint Finishing Epoxy Polyester Powder
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

TCE Series Floor Standing Enclosure Product Specifications

External Size Customizable
Thickness 1.2 mm / 1.5 mm
Color RAL 7035 (Light Grey)
Surface Treatment Powder Coated
Weight Approx. 60-95 kg (Depending on Size)
Protection Level IP55
Paint Finishing Epoxy Polyester Powder
Product Type Floor Standing Enclosure
Dimension (L*W*H) 600 x 600 x 1800 mm
Accuracy Precision Engineered to Standard Tolerances
Material Cold Rolled Steel

Mounting Type Floor Standing
Ambient Temperature Range -25°C to +85°C
Application Electrical Panel, Automation, Networking, Control Systems
Accessories Available (Mounting Plate, Gland Plate, Earthing Kit, etc.)
Door Type Single / Double Door with Reinforced Structure
Locking System 3-Point Locking System
Gasket PU/EPDM Gasket for Waterproofing
Ventilation Optional Louver/Openings Available
Window Option Available upon Request
Cable Entry Provision for Bottom and Top Cable Entry

Product Description

BCH TCE Series Floor Standing Enclosure is a heavy-duty electrical enclosure designed for housing control panels, power distribution equipment and automation systems in industrial environments. Manufactured with high-quality sheet steel and precision engineering, it offers excellent strength, durability and long-term protection for critical electrical components.

The enclosure features a modular and spacious design, allowing easy installation of panels, MCCs, PLC systems and accessories. With effective sealing, it provides reliable protection against dust and environmental factors, making it suitable for continuous industrial operation. The floor-standing structure ensures stability and high load-bearing capacity for large control systems.

BCH TCE Series enclosures are available in various sizes and configurations to meet diverse industrial application requirements.

Key Features:

Heavy-duty floor standing design
Strong sheet steel construction
Spacious and modular internal layout
Dust-protected and secure enclosure
Suitable for large control and power panels

Applications:
Industrial control panels, MCC panels, PLC automation systems, power distribution boards, process and manufacturing industries.
