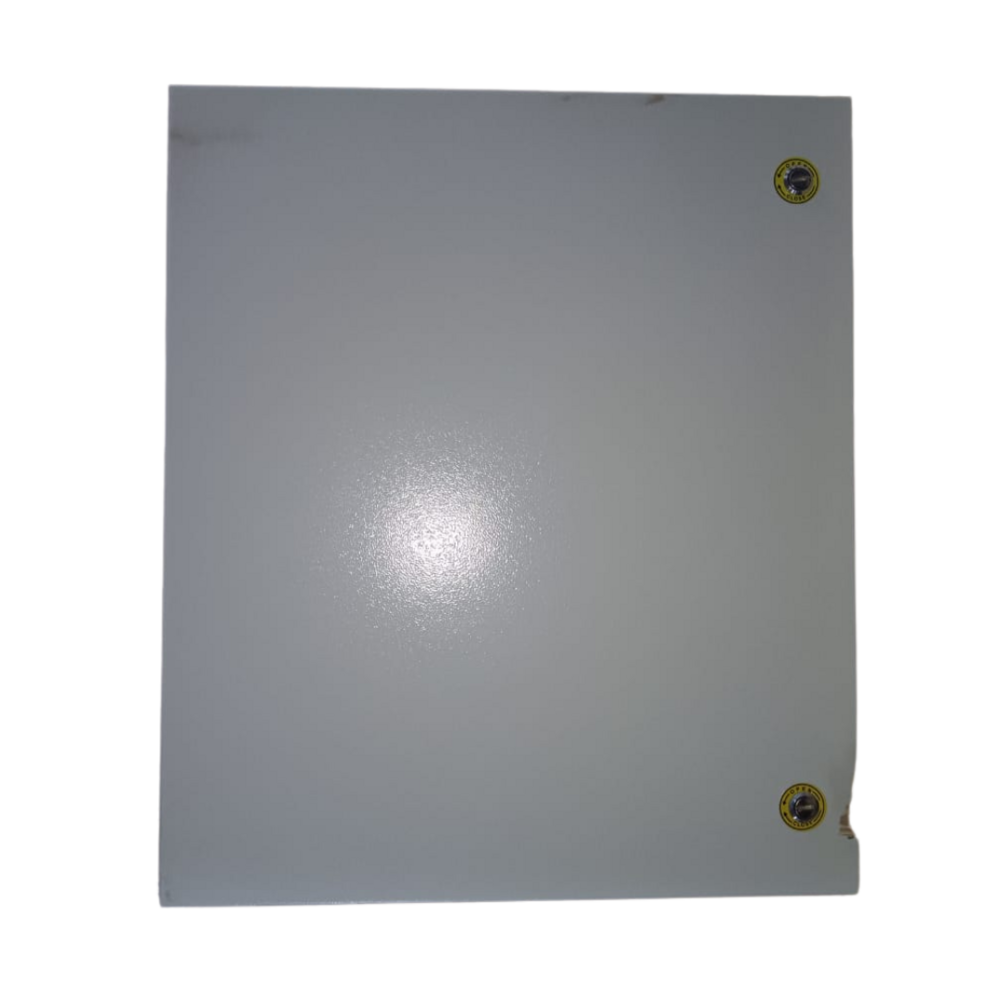

nVent Hoffman Enclosure Mild Steel MAS0808030R5
10599.0 INR
Product Details:
- Material Mild Steel
- Protection Level IP66
- Surface Treatment Powder Coating
- Weight 40.4 Kilograms (kg)
- Color Light Gray
- Warranty 1 Year
- Click to View more
X
nVent Hoffman Enclosure Mild Steel MAS0808030R5 Price And Quantity
- 1
- 10599.0 INR
nVent Hoffman Enclosure Mild Steel MAS0808030R5 Product Specifications
- 1 Year
- IP66
- Mild Steel
- Powder Coating
- 40.4 Kilograms (kg)
- Light Gray
nVent Hoffman Enclosure Mild Steel MAS0808030R5 Trade Information
- 20 Per Day
- 1 Week
- No
- [, ]
- l, a, ', ], [, ', A, l, , I, n, d, i
- Industry Standards UL 508A Listed; Type 4, 12; File No. E92044 cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044 NEMA/EEMAC Type 4, 12 CSA, File No. 1442951: Type 4, 12 IEC 62208 IP66 KEMA, GOST, Lloyds, DNV, Maritime, CE
Product Description
The mild steel single door wall mounted enclosure range, MAS, with a IP 66 protection degree, is available off the shelf in many different sizes. This enclosure range is well suited for many different applications. The risk for component failure, and with that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure.Features
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: Complies with IP 66, TYPE 4, 12, IK 10. For outdoor installation, the use of a rain Hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistance to corrosion must be taken into consideration for outdoor and indoor applications.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Material: Body: 1.2 mm mild steel for enclosures with a depth of 155 mm / 1.4 mm for enclosures with a depth of 210 or 260 mm / 1.5 mm for enclosures with a depth of 300 or 400 mm, or if a height or width is 1000 mm or greater. Gland plate: 1.4 mm mild steel. Door: 1.2 mm mild steel / 1.5 mm for enclosures with a height or width of 500 mm or greater / 2 mm for enclosures with a height or width of 800 mm or greater. Mounting plate: 2 mm galvanized steel.
- Lock: nVent HOFFMAN customized double-bit 3 mm lock, with 90 movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking for 1000 mm high enclosures and above. Other inserts are available as an accessory.
- Finish: RAL 7035 structured powder coating.
- Door: Surface mounted with 130 opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow left or right hand opening. Inner M6 welded studs to mount door profiles MMDP, see delivery. Sealing is ensured by an injected one piece polyurethane gasket.
- Delivery: Enclosure with door and mounting plate (not included for item numbers ending with PER5). For height 600 mm and above, two MMDP door mounting profiles. Gland plate(s) with gasket(s), plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above. Earthing facilities.
Specifications
Superior Protection for Critical Installations
The nVent Hoffman MAS0808030R5 enclosure provides a high level of ingress protection with its IP66 rating, making it suitable for environments exposed to dust, moisture, and harsh cleaning processes. Its sturdy mild steel construction, combined with powder coating, enhances durability and longevity, ensuring consistent performance in demanding applications.
Versatile Sourcing Channels in India
Available through multiple supply channels-dealer, distributor, exporter, retailer, supplier, trader, and wholesaler-this enclosure can be efficiently sourced in India whether you need bulk orders or single units. Our wide reach ensures accessibility and prompt delivery to suit your specific project or business requirements.
FAQ's of nVent Hoffman Enclosure Mild Steel MAS0808030R5:
Q: How does the IP66 protection level of the nVent Hoffman MAS0808030R5 benefit users?
A: The IP66 rating ensures the enclosure is dust-tight and protected against high-pressure water jets, making it ideal for harsh industrial environments where reliable protection of internal components is crucial.Q: What material and finish are used in this enclosure, and why are they important?
A: Constructed from mild steel and finished with powder coating, this enclosure provides strong mechanical strength and excellent resistance to rust and corrosion, extending its usability in various conditions.Q: When should I choose this enclosure for my application?
A: This enclosure is best selected when you require secure housing for electrical or electronic equipment in environments exposed to dust, water, or cleaning procedures. Its robust build and IP66 rating make it suitable for factories, workshops, and outdoor installations.Q: Where can I purchase the nVent Hoffman MAS0808030R5 in India?
A: You can obtain this product from authorized dealers, distributors, exporters, retailers, suppliers, traders, or wholesalers across India. We ensure flexible sourcing options suited to both volume and individual requirements.Q: What is the process to install this mild steel enclosure?
A: Installation typically involves securely mounting the enclosure to a wall or panel surface using standard hardware, routing cables through appropriate entries, and sealing all connections to maintain IP66 protection. Follow the manufacturer's guidelines for best results.Q: How does the 1-year warranty enhance the value of this enclosure?
A: The included one-year warranty provides customers with peace of mind, assuring protection against manufacturing defects and supporting reliable operation throughout the initial period of use.Q: What advantages does the powder-coated light gray surface offer?
A: The powder-coated finish in light gray not only gives a professional appearance but also significantly improves resistance to scratching, peeling, and corrosion, keeping the enclosure in optimal condition for a longer duration.Tell us about your requirement
